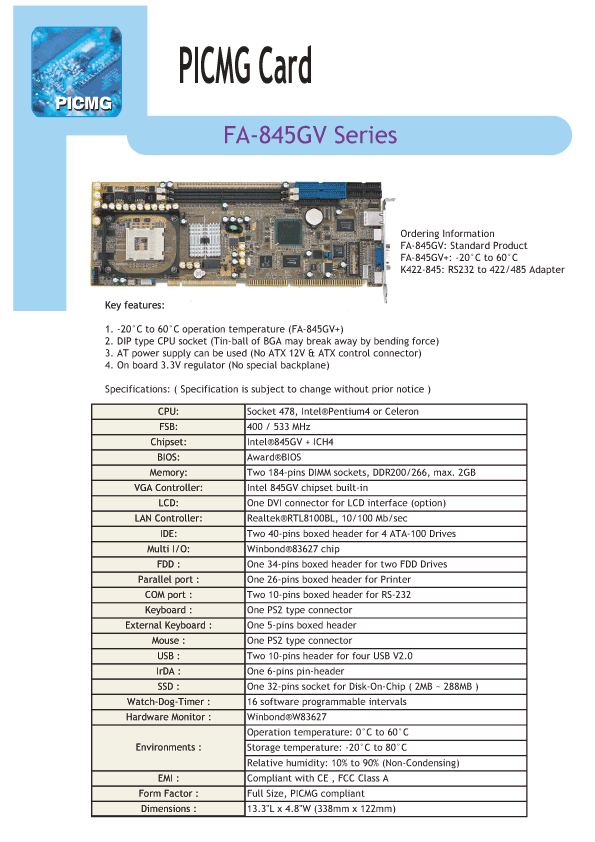

PICMG Card

catalog download

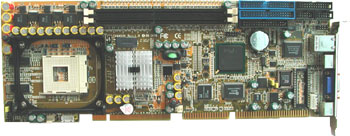

Model No.: FA-845GV / FA-815E / FC-815E

Ordering Information

FA-845GV: Standard Product
FA-845GV+: -20X to 60X
K422-845: RS232 to 422/485 Adapter

Key features:

Specifications: ( Specification is subject to change without prior notice )

CPU: Socket 478, Intel®Pentium4 or Celeron®
FSB: 400 / 533 MHz
Chipset: Intel®845GV + ICH4
BIOS: Award®BIOS
Memory: Two 184-pins DIMM sockets, DDR200/266, max. 2GB
VGA Controller: Intel 845GV chipset built-in
LCD: One DVI connector for LCD interface (option)
LAN Controller: Realtek®RTL8100BL, 10/100 Mb/sec
IDE: Two 40-pins boxed header for 4 ATA-100 Drives
Multi I/O: Winbond®83627 chip
FDD : One 34-pins boxed header for two FDD Drives
Parallel port : One 26-pins boxed header for Printer
COM port : Two 10-pins boxed header for RS-232
Keyboard : One PS2 type connector
External Keyboard : One 5-pins boxed header
Mouse : One PS2 type connector
USB : Two 10-pins header for four USB V2.0
IrDA : One 6-pins pin-header
SSD : One 32-pins socket for Disk-On-Chip ( 2MB ~ 288MB )
Watch-Dog-Timer : 16 software programmable intervals
Hardware Monitor : Winbond®W83627
Environments : Operation temperature: 0X to 60X
Storage temperature: -20X to 80X
Relative humidity: 10% to 90% (Non-Condensing)
EMI : Compliant with CE , FCC Class A
Form Factor : Full Size, PICMG compliant
Dimensions : 13.3"L x 4.8"W (338mm x 122mm)
