5.25" Embedded Little Board for Intel® Pentium III / Celeron / Tualatin

catalog download

Model No.: LB-815E

Ordering Information

LB-815E: Standard Product
LB-815E+: -20¢XC to 60¢XC
HS-815E: Screw-fixed CPU Cooler

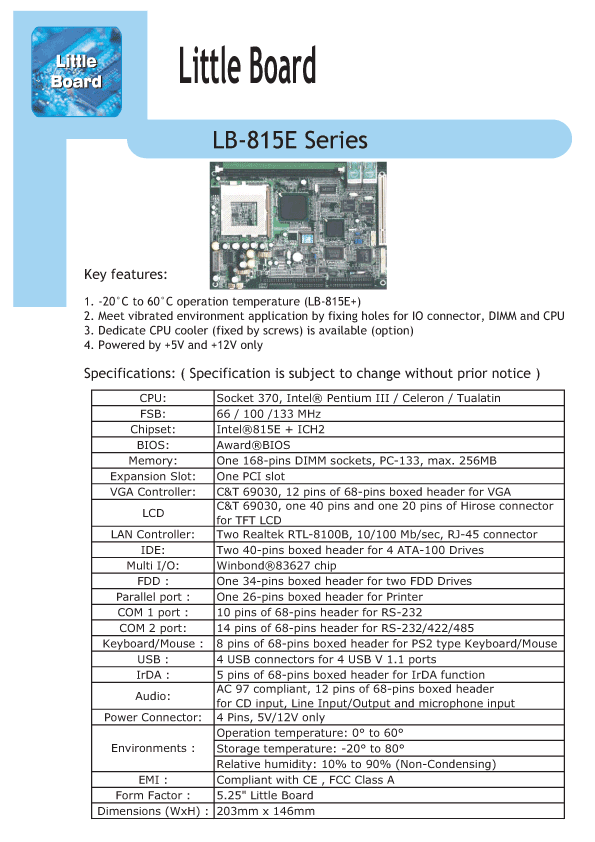

Key features:

Specifications: ( Specification is subject to change without prior notice )

CPU: Socket 370, Intel® Pentium III / Celeron / Tualatin
FSB: 66 / 100 /133 MHz
Chipset: Intel®815E + ICH2
BIOS: Award®BIOS
Memory: One 168-pins DIMM sockets, PC-133, max. 256MB
Expansion Slot: One PCI slot
VGA Controller: C&T 69030, 12 pins of 68-pins boxed header for VGA
LCD C&T 69030, one 40 pins and one 20 pins of Hirose connector for TFT LCD
LAN Controller: Two Realtek RTL-8100B, 10/100 Mb/sec, RJ-45 connector
IDE: Two 40-pins boxed header for 4 ATA-100 Drives
Multi I/O: Winbond®83627 chip
FDD : One 34-pins boxed header for two FDD Drives
Parallel port : One 26-pins boxed header for Printer
COM 1 port : 10 pins of 68-pins header for RS-232
COM 2 port: 14 pins of 68-pins header for RS-232/422/485
Keyboard/Mouse : 8 pins of 68-pins boxed header for PS2 type Keyboard/Mouse
USB : 4 USB connectors for 4 USB V 1.1 ports
IrDA : 5 pins of 68-pins boxed header for IrDA function
Audio: AC 97 compliant, 12 pins of 68-pins boxed header for CD input, Line Input/Output and microphone input
Power Connector: 4 Pins, 5V/12V only
Environments : Operation temperature: 0¢X to 60¢X
Storage temperature: -20¢X to 80¢X
Relative humidity: 10% to 90% (Non-Condensing)
EMI : Compliant with CE , FCC Class A
Form Factor : 5.25" Little Board
Dimensions (WxH) : 203mm x 146mm
