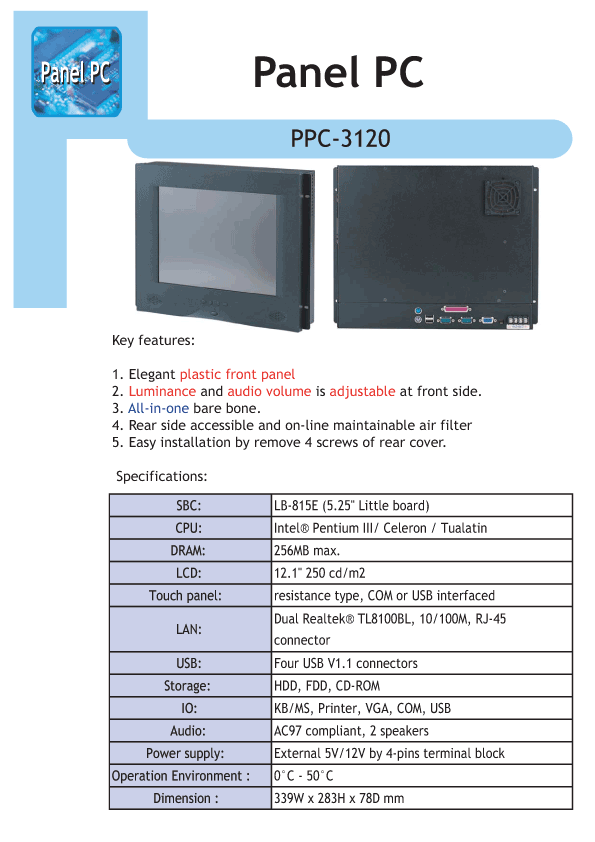

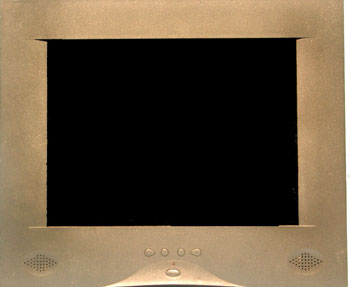

Panel PC

catalog download

Model No.: PPC-3120

Key features:

Specifications: (specification is subject to change without prior notice)

SBC : LB-815E (5.25" Little board)
CPU: Intel® Pentium III/ Celeron / Tualatin
DRAM: 256MB max.
LCD: 12.1? 250 cd/m2
Touch panel: resistance type, COM or USB interfaced
LAN: Dual Realtek® TL8100BL, 10/100M, RJ-45 connector
USB: Four USB V1.1 connectors
Storage: HDD, FDD, CD-ROM
IO: KB/MS, Printer, VGA, COM, USB
Audio: AC97 compliant, 2 speakers
Power supply: External 5V/12V by 4-pins terminal block
Operation Environment : 0 - 50XC
Dimension : 339Wx283Hx78D mm
