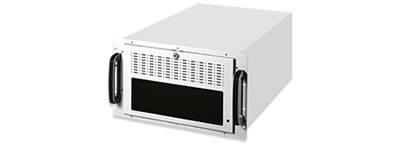

19" Rackmount Server P-P6ER
engineeringdimensionsfeaturesspecification
Back Overview



ATX 300W P/S.
Mini Redundant 250W/300W

ATX Redundant 300W P/S




Features
6U EIA RS310C Rack-Mount chassis specification & meets for FCC / CE requirements .
Rugged construction and design for hardsh industrial environment .
Support ATX/Baby AT motherboard and 7-20 slots passive backplane .
Hold-Down clamp design to protect plug-in cards from vibration .
Shock resistant drive bracket exposed : (6x) open 5.25" , (4x) open hidden drive bay .
(6x) 8cm ball bearing Fans with removable Air filter to have better ventilation and easy replacing .
AT/ATX/hot-swappable Redundant industrial grade power supply w/safety-approved .
A lockable front door for dust-proof integrity and running security .
Excellent mechanical designed for best shock-proof , dust-proof , water-proof and air-tight .
The front door with hinge design for smooth opening & security .
Clear activity LED indicator on the front side .




Specification
Model No.
P-P6ER(6U)
Drive Space 5.25" Half-height
6
3.5" Open
0
3.5" H.D.D. (Hidden)
4
Cooling Fan  8 cm Fan
6
Rear Panel* Slot
7 / 20
DB-9
DB-25
Power Supply( Optional ) PS/II AT
ATX
PS-II 300W or PS-II Redundant 300W
Safety
UL , CSA , TUV
Dimension(W.x D.x H.) mm
482.6 x 680.0 x 265.3
Inch
19.0 x 26.77 x 10.45
Packing 1pce / 1CTN N.W. :
21.0 kgs
G.W. :
24.0 kgs
MEAS. :
7.28 cuft
