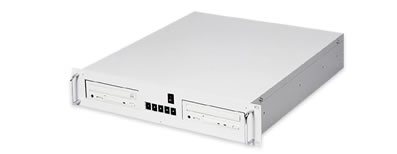

19" Rackmount Storage P-S2HA/S3HA
engineeringdimensionsfeaturesspecification
Back Overview

AT/ATX 300W P/S



Features
2U/3U Rack-Mount Storage Chassis meets EIA RS310C Industrial standard and FCC/CE requirements .
Rugged construction and design for harsh industrial environment .
SCSI-1/SCSI-2/Wide SCSI/ Ultra Wide/Ultra2 Wide interfaces are available .
Shock resistant drive bracket exposed :
P-S2HA : 2x open 5.25" , 3x 3.5" hidden drive bay .
S3HA :4x open 5.25" , 2x 3.5" hidden drive bay .
1 x 8cm ball bearing Fans with removable Air filter to have better ventilation and easy replacing .
AT 300W industrial grade power supply w/safety-approved .
Excellent mechanical designed for best shock-proof , dust-proof , water-proof and air-tight .




Specification
Model No.
P-S2HA ( 2U )
P-S3HA ( 3U )
Drive Space 5.25" Half-height
2
 4
3.5" Open

3.5" H.D.D. (Hidden)
3
 2
Interface
SCSI-1/SCSI-2/SCSI-3/Ultra SCSI/Ultra II SCSI
Internal Cable
IDC ( 50 / 68 ) x 5
 IDC ( 50 / 68 ) x 5
ID Switch
5
 6
Cooling Fan 8cm Fan
1
 1
Power Supply( Optional ) PS/II AT 300W
Redundant ATX   300W
Safety UL , CSA , TUV UL , CSA , TUV
Dimension(W.x D.x H.) mm  482.6 x 500.0 x 88.5 482.6 x 500.0 x 132.75
Inch 19.0 x 19.69 x 3.49 19.0 x 19.69 x 3.49
Packing 1pce / 1CTN N.W. :  9.2 kgs 9.2 kgs
G.W. :  11.2 kgs 11.2 kgs
MEAS. : 2.74 cuft
 2.74 cuft
