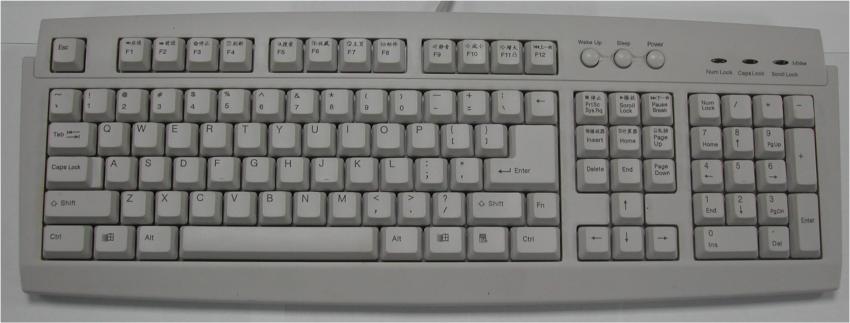

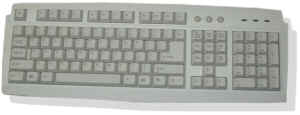

8871

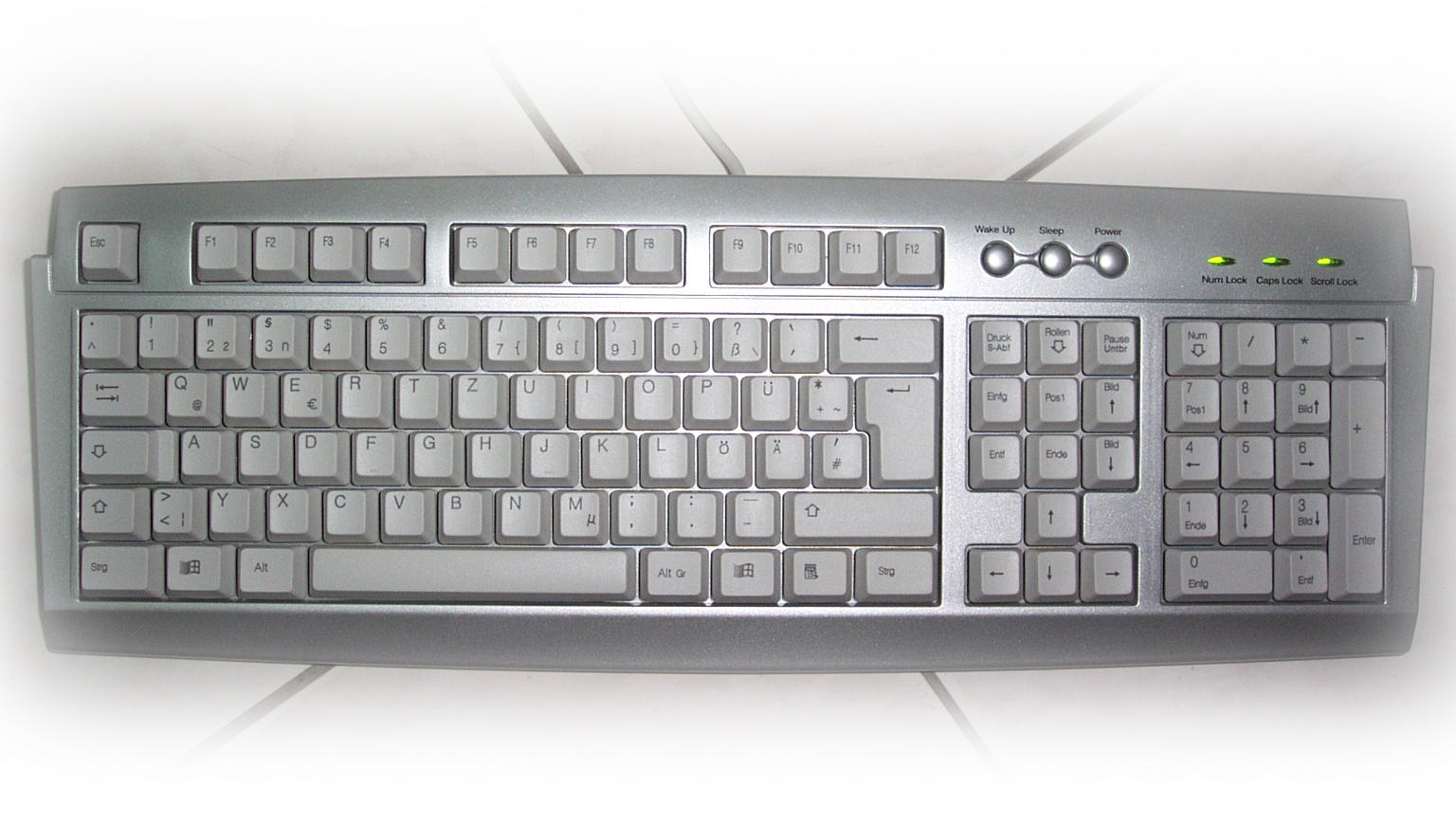

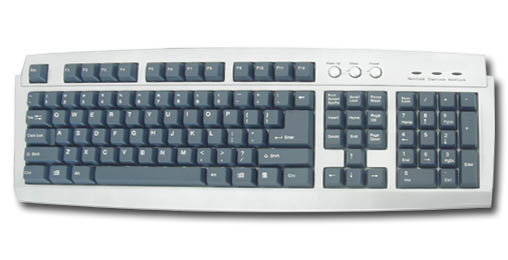

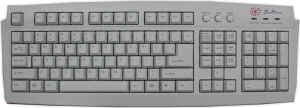

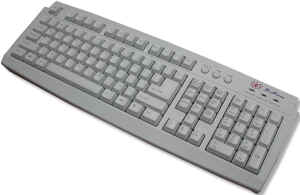

Slim MultiMedia Keyboard

Special Features

	3 keys for Windows ACPI key
	- Wake Up. Sleep, Power
	Long life switch
	- Over 10 Million Life Cycles Per Switch
	Special "Fn" Key MultiMedia Function Supports

Specification :

•	Compatibility: IBM AT, PS/2 and USB interface
•	Multi-languages version available
•	Rubber Key Switch Pad: Silicone Rubber
•	Operation type: tactile type
•	Cable length: 1.0 meters
•	Travel distance:3.5+0.5mm
•	Travel to peak:1.5+0.5mm
•	Peak force:55 gm
•	Operating temperature: 0 to 50C
•	Storage temperature:-20 to 60C
•	Operating humidity:<95%RH
•	Keystroke life: 10 million lifer cycles
•	Electronic data:+5VDC+5% @250mA
•	Compatible For WIN 95/98/2000/NT/ME/XP,IBM PC/XT/AT

Delivery: 3-4 weeks after order confirmation
Warranty: 1 year

Introduction:

Win98 Keyboard, with 3 Power Management Keys

Packing：

PCS	N.W	G.W
10	9 KG	11 KG

Carton Size : 505×430×405 mm

Keyboard Dimensions: L472.0xW167.0xH33mm

Keyboard Weight: 460 g

8871標準Windows98鍵盤(網路鍵盤)

■高品質薄膜式按鍵

■壽命超長,擊鍵次數超過1000萬次

■相容於Windows95/98,IBM PC/AT,PS/2

■Windows98省電功能

■結構堅固耐用符合人體工學設計

■支援多國語言

■安規FCC,CE

(一)       鍵盤安裝說明

① 關閉系統電源

② 將鍵盤連接頭插入電腦鍵盤介面

③ 鍵盤電源信號線插頭有AT.PS/2.USB三種

 用戶可根據自有系統的配製來選擇

④ 鍵盤內包裝盒右側均有插頭的標識,購買時請注意

⑤ 開啓電腦系統電源

(二)       鍵盤規格說明:

① 外觀尺寸:L472.0xW167.0xH33mm

② 按鍵行程:4.0±0.5mm

③ 按鍵彈力:55±8g

④ 按鍵壽命:≥10,000,000次

⑤ 輸入電壓:+5.0VDC±10%,200mA maximum

⑥ 接觸電阻:500 ohm maximum

⑦ 絕緣電阻:DC100V 50M ohm minimum

⑧ 使用環境:0℃∽50℃ 濕度80%RH

⑨ 存放環境:-20℃∽60℃濕度95%RH

⑩ 相容於Windows95/98/2000,IBM PC/AT,PS/2

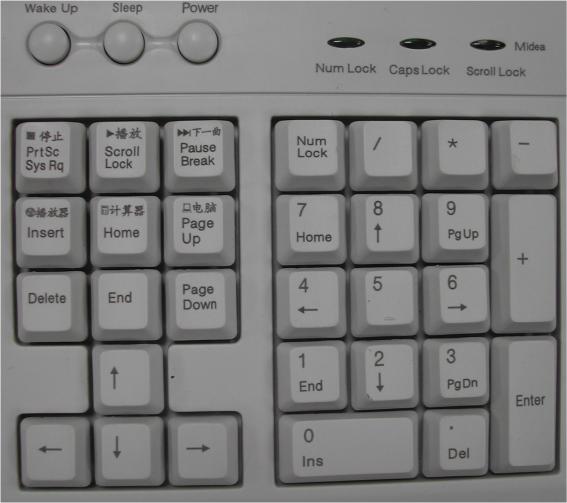

(三)       標準WIN98(網路鍵盤)-以右上角3KEYS定義.

1.     標準WIN98定義爲:wake up,sleep.power.

2.     網路鍵盤定義爲:Internet,sleep,Email.並需配置相應的Driver.
