K528

Mini Keyboard

Size : 260 X 141 X 20 mm W/85 Key

color: Black WHITE BLUE

Connector: USB, PS/2


¡@

Minimum order: 1000 pcs

Warranty: 1 year

Delivery: 3~4 weeks after order confirmation

Special Features

¡@

Mini Size Saving Your Space

¡@

Note book Touch Feeling

¡@

Membrane Switch Technology

¡@

Over 10 Million Life Cycles Per Switch

¡@

Compatible with Win98/95/NT/2000/XP

¡@

Special Languages Available


Specification :

Excellent readability and extended wear double shot molded keycaps

Compatible with Windows 95/98/2000/XP/NT/ME, IBM PC/XT/AT,PS2

DIN Standard ergonomics low profile

Silent tactile keystroke

ISO 9002 Certified


Introduction:

¡@

Electrical Data

Max Input Power : 5+-0.25Vdc @ 300mA Max

Key Rollover : Multi-Key Rollover.

Serial Data Output : Synchronous 8 bit data

¡@

Mechanical Data

Key Stroke travel: 3.5mm +-0.3mm

Actuation Force: 55+-10g

¡@

Environment Data

Operating Temperature: 0~50C

Operating Humidity: 10%-90% RH at 40 C

Non-Operating Temperature: -20~60C

Non-Operating Humidity: 5%~95% RH at 40C

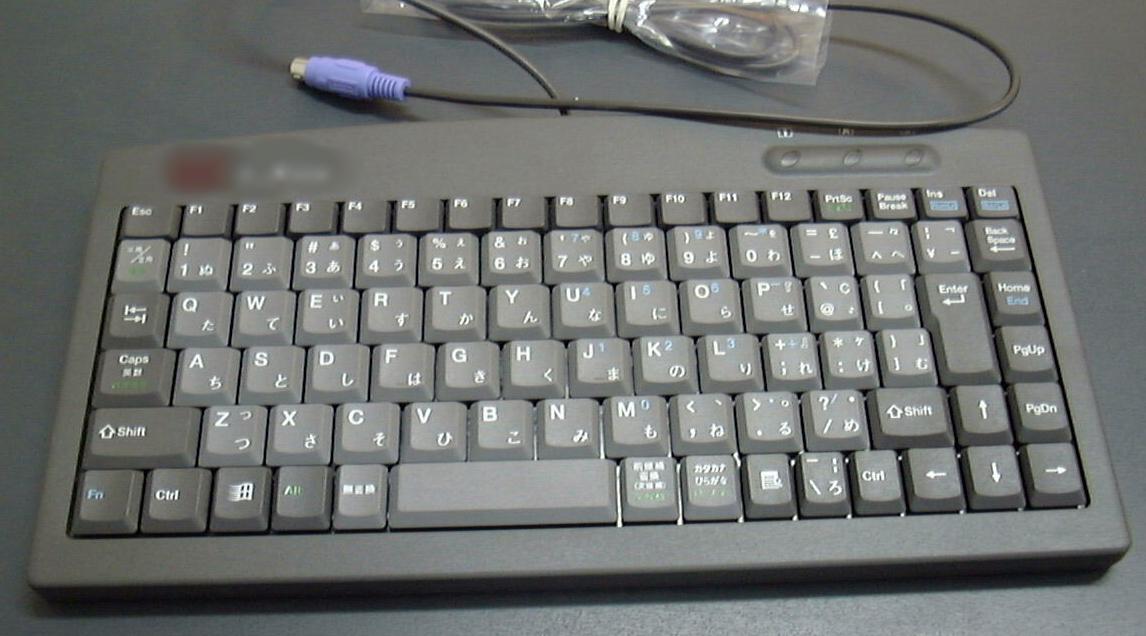

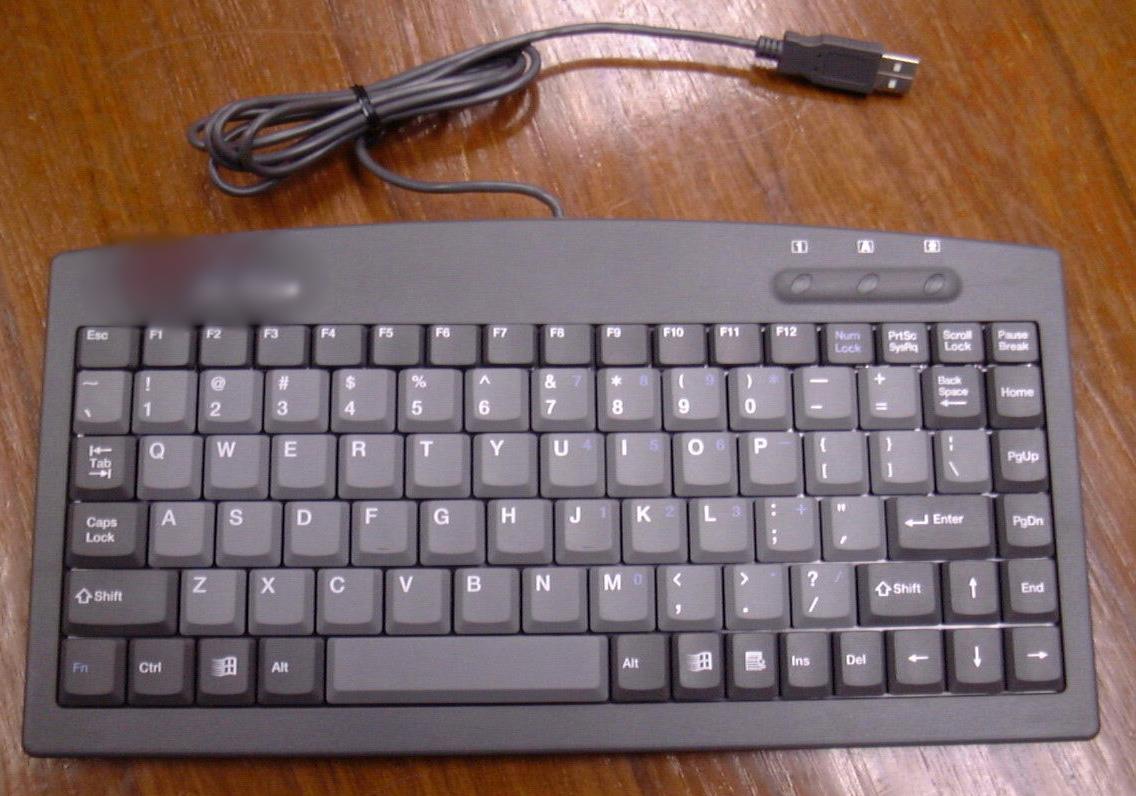

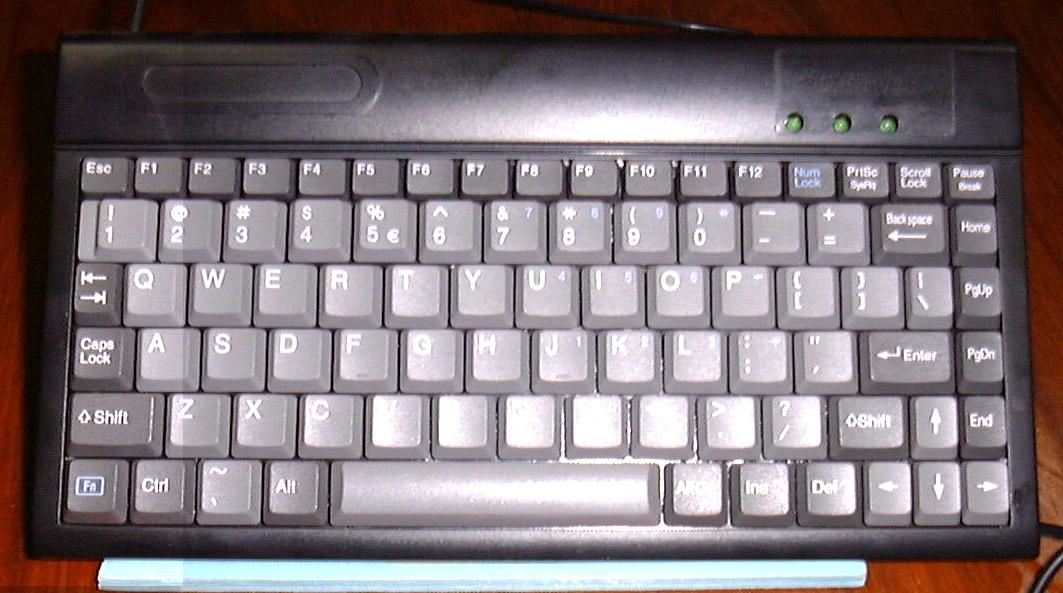

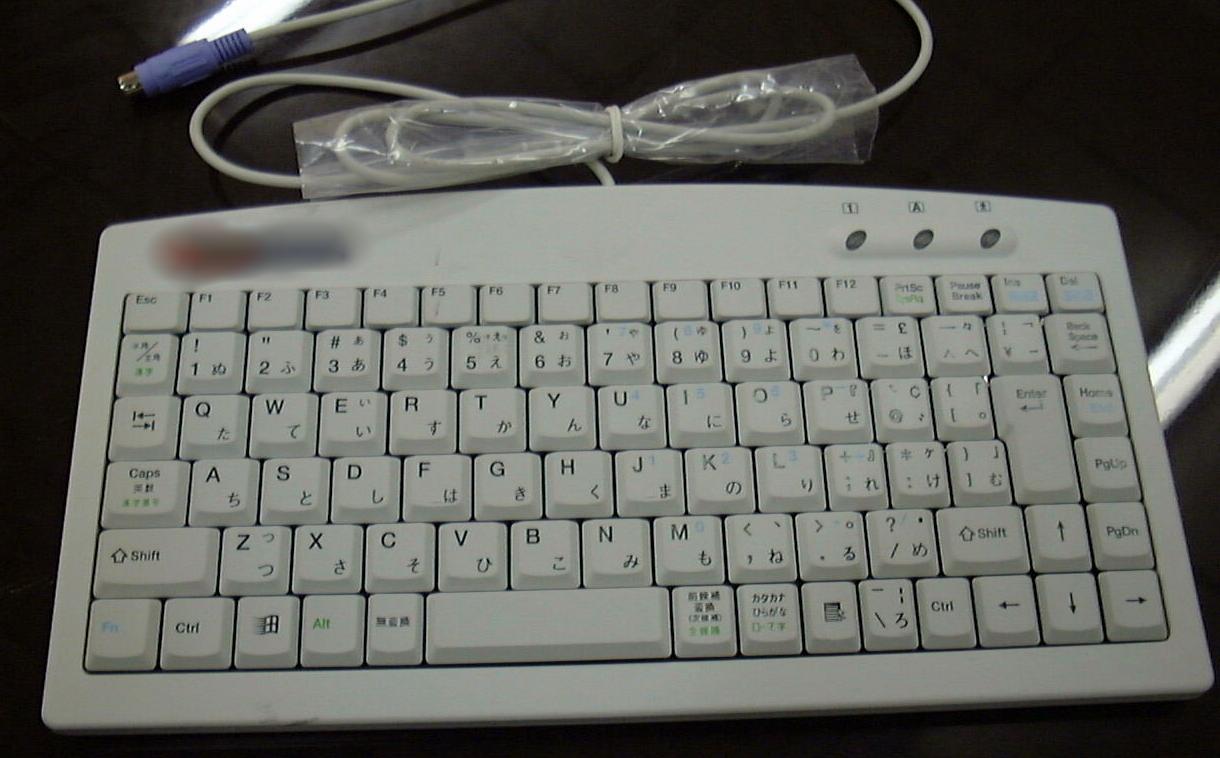

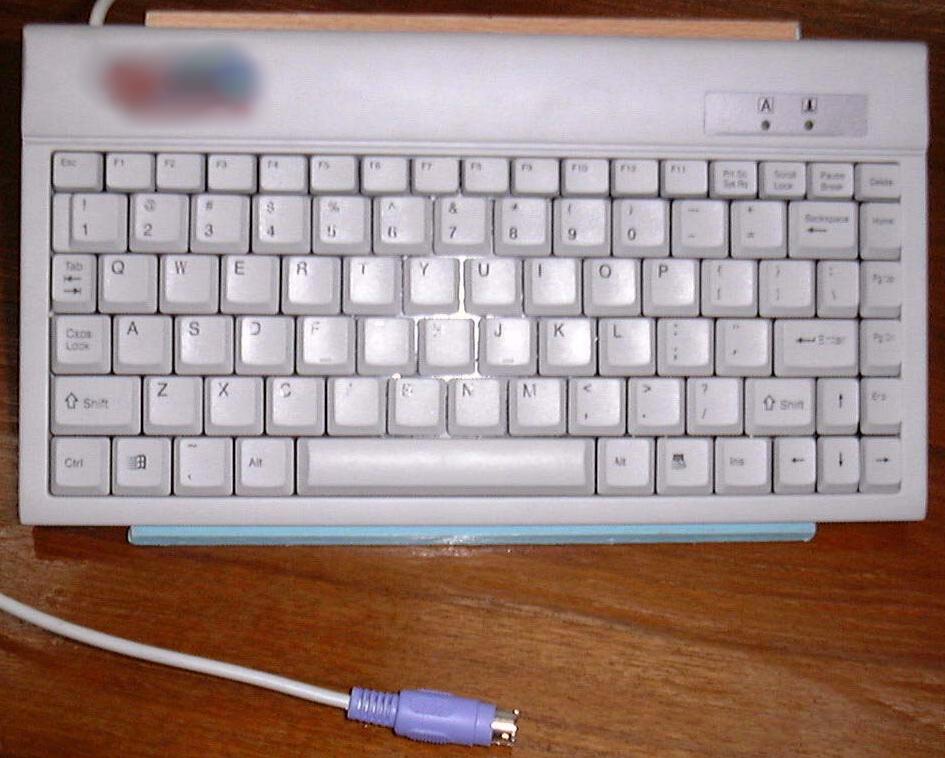

KB 1328 Pictures: Black USB Black PS/2 White PS/2 Photo4 JAPAN Layout

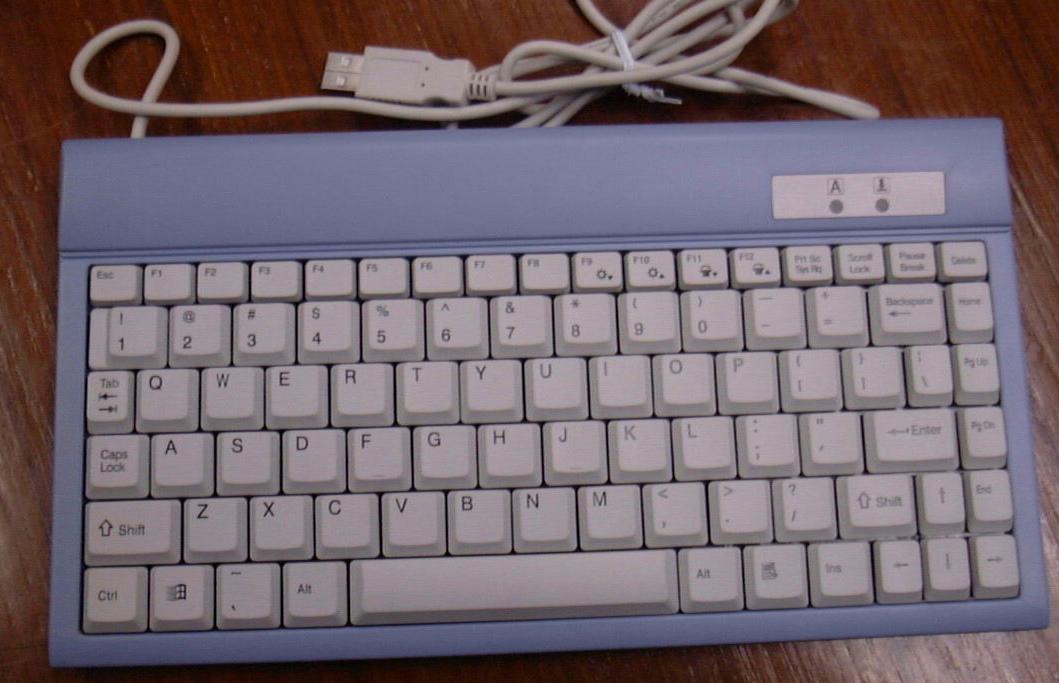

KB1528 Pictures: White Black Blue Japan Layout
