K8232/9910

¡@

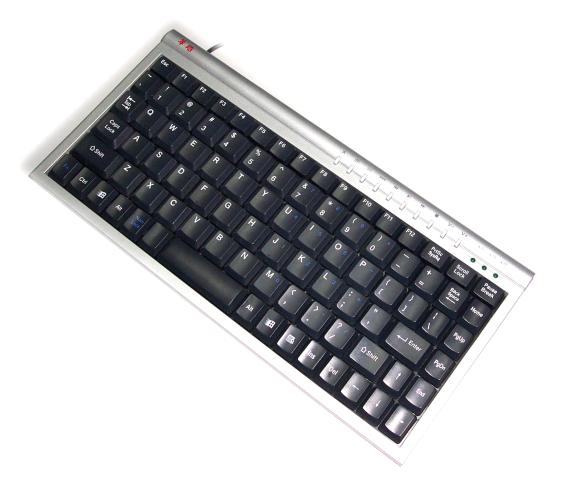

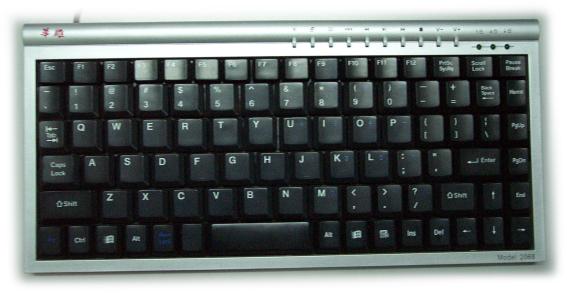

Mini Keyboard

Size : 260 X 141 X 20 mm W/85 Key

layout:US/UK/FR/KR/JA/SP/GR/BE/CH/HG

color: Black WHITE SILVER

Connector: PS/2, USB

¡@

Minimum order: 1000 pcs

Warranty: 1 year

Delivery: 3~4 weeks after order confirmation

Special Features

¡@

Mini Size Saving Your Space

¡@ 10 Hotkeys
¡@

Notebook Touch Feeling

¡@

Membrane Switch Technology

¡@

Over 10 Million Life Cycles Per Switch

¡@

Compatible with Win98/95/NT

¡@

Special Languages Available


Specification :

Excellent readability and extended wear double shot molded keycaps

Compatible with Windows 95/98/2000/XP/NT/ME, IBM PC/XT/AT,PS2

DIN Standard ergonomics low profile

Silent tactile keystroke

ISO 9002 Certified


Introduction:

¡@

Electrical Data

Max Input Power : 5+-0.25Vdc @ 300mA Max

Key Rollver : Multi-Key Rollover.

Serial Data Output : Synchronous 8 bit data

¡@

Mechanical Data

Key Stroke travel: 3.5mm +-0.3mm

Actuation Force: 55+-10g

¡@

Environment Data

Operating Temperature: 0~50C

Operating Humidity: 10%-90% RH at 40 C

Non-Operating Temperature: -20~60C

Non-Operating Humidity: 5%~95% RH at 40C

•Ultra Responsive to the user's touch; effectively reducing typing stress.
•Dimensional Blade inspired, Hyper Slim design.

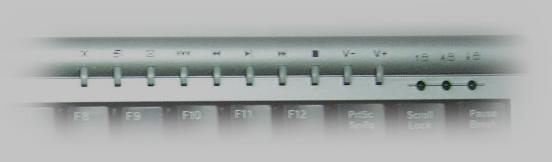

•10 built-in hot keys for media player, power management and internet access.
•Unique mute design ¡A stylish figuration
•Key switch life≥20, 000,000times
•Rigid metal plate structure, free of interference
•EMI: FCC Class B, CE
•Connector: PS/2,USB,PS/2+USB
¡@
