BRICK CUTTER/BRICK SPLITTER        Stone Tools/MarbleTools/Granite Tools Equipment

CisFun Technology Corp.  Contact us

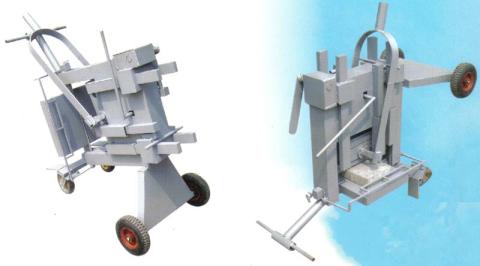

CF-03 Brick Cutter	Features: 1. One second for placing a cutting blade on a brick. 2. Cutting a brick into blocks with fixed length. 3. Platen bouncing back automatically. 4. Easy movement. 5. Quick brick cutting. 6. Other features as show:
		▲ Metal piece pressing
▲ Brick cutting (20cm [H]*30cm [W])		▲ Metal piece punching/staving (Dia. 16mm*Thickness 3mm)
▲ Metal plate cutting (25mm [W]*2mm [T])		▲ Metal plate bending (100mm [W]*2mm [T])
▲ Metal bar cutting (Dia. 14mm)		▲ Metal bar bending (Dia. 14mm)

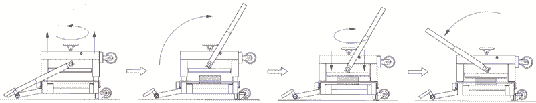

Operation:		Movement:		Bed replacement: (3 sec.)
Place cutter upright.
▼
	►		►		►
Push lever up and place a brick on bed.		Push lever down for pressing platen on the brick.		Push cutting blade down to cut the brick.		The platen bounces back automatically.

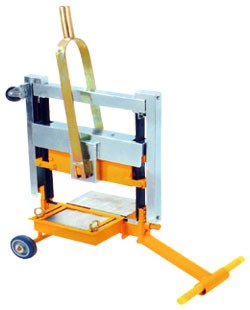

CF-02 Brick Cutter

FEATURES:

1. Easy movement. Quick brick cutting.

2. Cutting a brick into blocks with fixed length.

3. Platen lifting or lowering quickly.

Movement

Wheeling on two rear wheels on a supporting ground with irregularity.

Wheeling on three wheels on a flat supporting ground.

Bed replacement: Three seconds for bed replacement

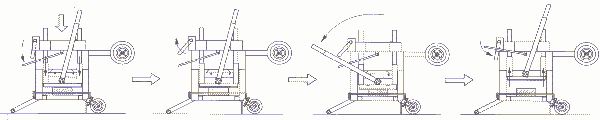

Operation:

Counterclockwise rotate hand-wheel to lift platen.	Pull lever up. Place a brick on bed.	Clockwise rotate the hand-wheel until the platen is disposed about 2mm above the brick.	Push  down cutting blade to cut the brick.

CF-01 Brick Cutter

FEATURES:

1. One second for placing a cutting blade on a brick.

2. Cutting a brick into blocks with fixed length.

3. Platen bouncing back automatically.

4. Easy movement.

5. Quick brick cutting.

Movement

Bed replacement: Three seconds for bed replacement

Operation:
