INTRODUCTION

EASY Operation and Setting!

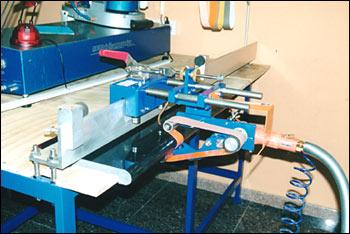

The Edge Belt Polishing Machine is the revolutionary stone polishing machine that is simple to use, energy-efficient and cost effective.

With its high accuracy and high stability features, this machine can handle thickness ranges and lengths that exceed other belt polishing machines in its class.

- HIGH ACCURACY

- HIGH STABILITY

- EASY TO OPERATE

- EASY TO INSTALL

- COST EFFECTIVE

A new and improved system for polishing of granite, marble and homogeneous tile edges. Thickness ranges from 10 - 50mm and offers a big reduction in work time, a huge cut in production costs and a degree of polish that is better than that of slab surface.

The machine will easily polish a stone with length ranging from 100mm to 3,000mm. (Upon request, other lengths are also available).

With this new, simple, efficient and economical system that comes with a sturdy mechanical structure, stone polishing will never be the same again

Functions:

1.New type motor to save power.
2.Press the ON/OFF button, it will grind automatically and spray water to save manpower. (Automatic Type)
3.It can set up the frequency of cycles then stop automatically.
4.It can grind into polishing straight line without distorting.
This Polishing Machine can for beveller edges mostly rounded profiles of stone. Polishing machine of mostly round lateral stone to be cut into oblique angle edge.
Set a machine on "L" shape guide rail (2900mm length, made by Aluminum Alloy Steel), so, everyone can easily work by very simple operation, i.e., Place a machine on L shape sliding rail so that everyone may operate with simple method easily.

5. Easy of operation and installation.
6. Suitable for CPM-DIA belt.
It will be perfect installation and sharp cutting.

TECHNICAL DATA

Motor:

Pneumatic, speed from 0 - 4000 RPM (Continuous speed pre-selection)

(0.16KW)

Electrical, Original Motor Speed from 0 - 3700 RPM (2HP). After Gear-Change (GEARSHIFT), the Speed Change from 0-2200 RPM. (Continuous speed pre-selection)

(1200Watts)

Slab Thickness:

10-50 mm

Dimension

2900(L)*1100(W)*900mm(H)

Total Weight:

12 kg (Without the L Frame)

110kgs (With the L Frame and Stand)

STANDARD EQUIPMENT

1 no. x Guide Carriage with length totaling (L type Rail Length):2900mm (other lengths available upon request)

1 no. x Air Hose

1 no. x Water Hose

1 no. x Open End Wrench

1 no. x Splash Guard

1 no. x Side Handle

1 no. x Stop Guard

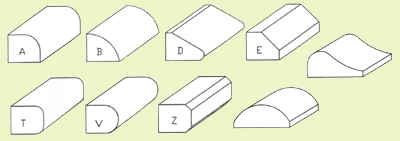

Profiles that can be polished with our system.

OPTIONS:
Polishing Belt Grit # 60

Polishing Belt Grit # 100

Polishing Belt Grit # 200

Polishing Belt Grit # 400

Polishing Belt Grit # 800

Polishing Belt Grit # 1,500

Polishing Belt Grit # 3,000

Polishing Belt Grit # BUFF

Perfect fitting and sharp cutting by CPM-DIA BELT.
