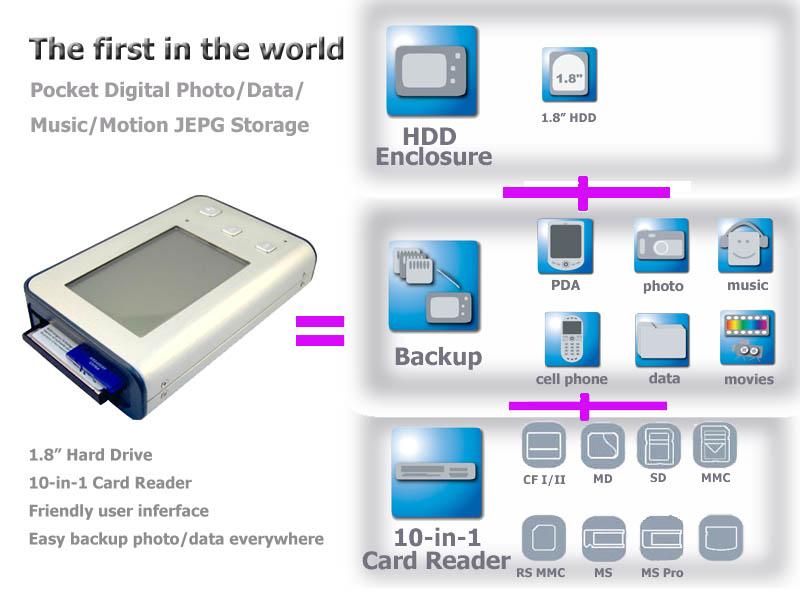

1.8" USB2.0 Digital Photo/Data Storage        leaflet DOWNLOAD
with 10-in-1 Card Reader/Writer
Support CFI/II, MD, SD, MMC, RS MMC, MS, MS Pro, MS Duo
with 1.8"  20GB Toshiba Hard Drive

1.8" HDD
HDD Enclosure
10-in-1 Card Reader
Data Backup
LCM Monitor
Model No.:DP18U2
FEATURES
USB 2.0 HDD enclosure equipped with one card slot (CFI / II,
MicroDrive, SD, MMC, RS MMC, MS, MS Pro, MS Duo)
One touch copy bottom, Easy installation & setup with user friendly
menu
Large scale LCD (64 x 40 mm) showing operating status
¡@
- Automatic detection Hard Drive capacity
- Automatic detection Battery capacity
- Automatic detection Data copying process percentage
  Automatic data copying from memory card (s) to HDD
Top View
Select function supports multiple memory card copying to HDD
Supports new folder creating for data copying
Supports multiple partition on HDD
Green design on power saving mode
USB2.0, AC input
- Automatic power-off after idle 45 seconds
Left View
- Does not consume the battery after turned off
LED indications of the Li-Ion battery rechargeable error
Automatically detects HDD and card readers with PC/Notebook link
Built-in rechargeable Lithium-Ion battery

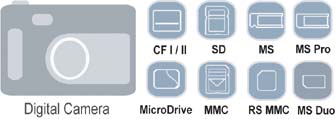

CFI/II, MicroDrive, SD, MMC, RS MMC, MS,
Rechargeable through USB port or AC/DC power adapter
MS Pro, MS Duo Card Reader
¡@
CF I / II
MicroDrive
SD
MMC
RS MMC
MS
MS Pro
MS Duo
Front View
¡@
¡@
¡@
¡@

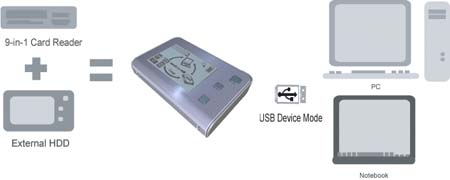

APPLICATION
LED, Power on/off, set, copy, reset
in the car
at home
in the outdoor
in the office
Memory Cards Backup
Digital Photography Backup
PDA Data Backup
Digital Photo Storage Application
Cell Phone Memory Backup

SPECIFICATION
Storage 1.8" Hard Drive and Cards (CFI/II, MicroDrive, SD, MMC, RS MMC, MS, MS Pro, MS Duo)
Data Transferring Interface 1.8" HDD: USB2.0
Card Reader/Writer: USB2.0
LCD 64 (D) x 40 (W) mm, Seven-Segment FSTN
File System FAT 32
Battery Rechargeable 800mA Li-Polymer Battery
Power Adapter AC input: 100V to 240V, Frequency: 50Hz to 60Hz
Operation System Windows 98SE/ME/2000/XP or MacOS 9.0 and Later
Dimensions 103.00 (D)x 65.00 (W)x 24.00 (H) mm
4.06 (D) x 2.56 (W) x 0.95 (H) inches
Weight(with HDD& Battery) 130 g
4.58 oz


¡@

PACKING INFO ¡@
  20pcs/CTN
