| CPU: |
Socket 370, Intel®Pentium III / Celeron / Tualatin |
| FSB: |
66 / 100 /133 MHz |
| Chipset: |
Intel®815E + ICH2 |
| BIOS: |
Award®BIOS |
| Memory: |
Two 168-pins DIMM sockets, 133MHz, max. 512MB |
| VGA Controller: |
Intel 815E chipset built-in |
| LAN Controller: |
Intel®82562ET, 10/100 Mb/sec |
| IDE: |
Two 40-pins boxed header for 4 ATA-100 Drives |
| Multi I/O: |
Winbond®83627 chip |
| FDD : |
One 34-pins boxed header for two FDD Drives |
| Parallel port : |
One 26-pins boxed header for Printer |
| COM port : |
Two 10-pins boxed header for 2 RS-232 ports, RS-422/485 is
solder option |
| Keyboard : |
One PS2 type connector |
| External Keyboard : |
One 5-pins boxed header |
| Mouse : |
One PS2 type connector |
| USB : |
One 10-pins header for 2 USB ports |
| IrDA : |
One 6-pins pin-header |
| SSD : |
One 32-pins socket for Disk-On-Chip ( 2MB ~ 288MB ) |
| Watch-Dog-Timer : |
16 software programmable intervals |
| Hardware Monitor : |
Winbond®W83627 |
| Environments :
|
Operation temperature: 0¢X to 60¢X |
| Storage temperature: -20¢X to 80¢X |
| Relative humidity: 10% to 90% (Non-Condensing) |
| EMI : |
Compliant with CE , FCC Class A |
| Form Factor : |
Full Size, PICMG compliant |
| Dimensions : |
13.3"L x 4.8"W (338mm x 122mm) |

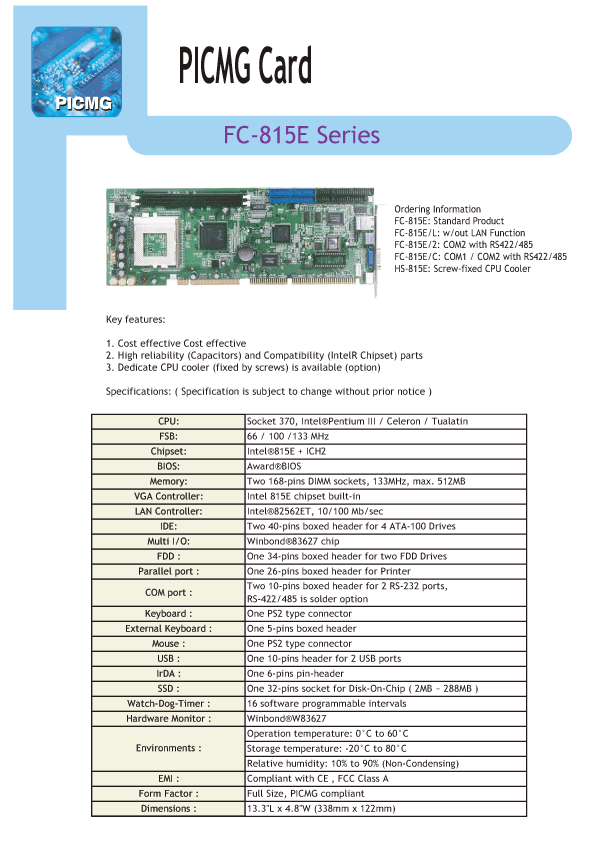

catalog download
