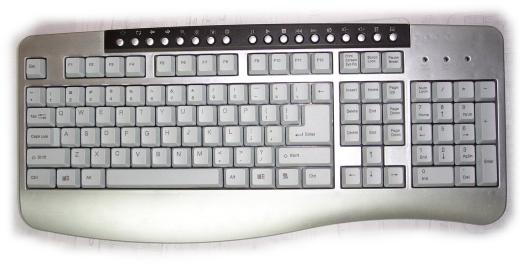

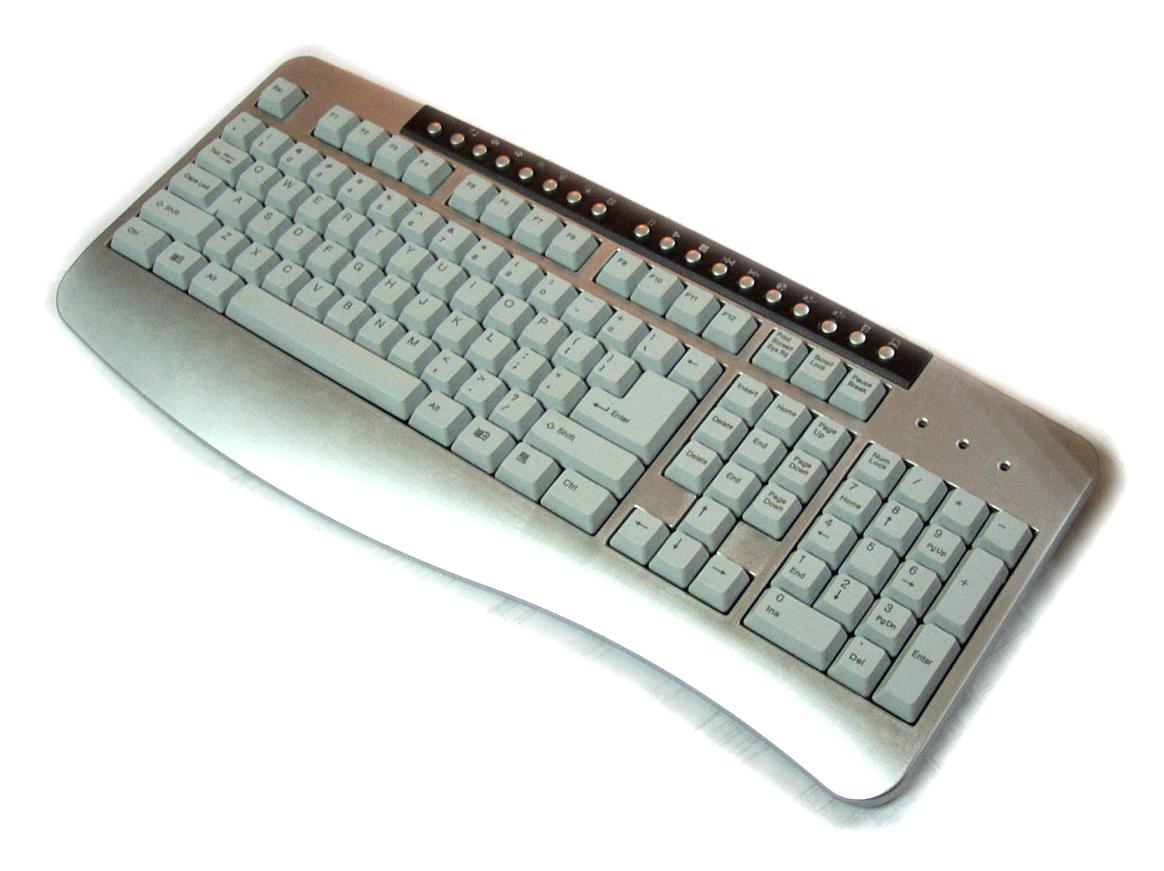

8880 Ergo Multimedia keyboard

Feature

• Spill resistant, Laser printing keycaps for longer wear resistance
• 3 Power Management Keys: Power, Sleep, Wake Up

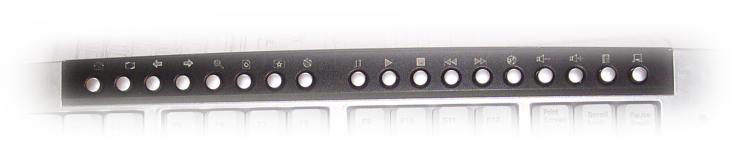

• 18 hot keys, Ergo design, high quality and economic solution
• Ergo stylish and ergo curve design to match Web PC/LCD
• 420mm(L)*165mm(W)*18mm(H)

Compatibility

• Windows 95/98/2000/XP/NT/ME, IBM PC/XT/AT/PS2/USB

Electrical Specifications

• Maximum Rating:+5.0VDC +-10%, 200mA Maximum
• Switch mechanism: Membrane
• Compatibility: fully compatible with USB or PS/2
• Contact Resistance:500 Ohm maximum
• Insulation Resistance:DC100V 50M Ohm minimum

Mechanical Data

• Switch travel: 3.0+-0.5 mm
• Operating force: 60+-10g
• Switch reliability: 10 million cycles
• Packing information: 1 pc/box
• Carton Size: 480×350×464mm; 20pcs/carton

Environmental Specifications

• Operating temperature:0~50 C
• Storage temperature:-20~+60 C
• Humidity: 80% RH~95%RH
