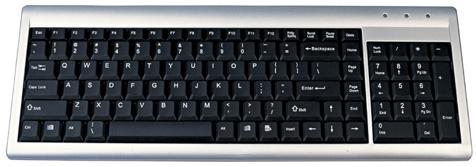

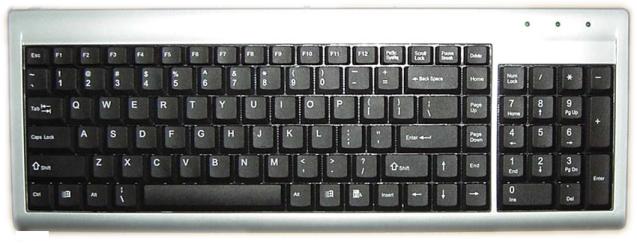

8212 Ergo Super Slim keyboard

The idea of developing Slim Keyboards is to companion with LCD Monitors. With the space saver advantage of LCD monitors, Slim Keyboards can also create elegant appearance and high-end value.

Feature

• Spill resistant, Laser printing keycaps for longer wear resistance
• 104 keys. Slim design, high quality and economic solution
• Slim stylish and ergo curve design to match Web PC/LCD
• 390mm(L)*145mm(W)*18mm(H)

Compatibility

• Windows 95/98/2000/XP/NT/ME, IBM PC/XT/AT/PS2/USB

Electrical Specifications

• Maximum Rating:+5.0VDC +-10%, 200mA Maximum
• Switch mechanism: Membrane
• Compatibility: fully compatible with USB or PS/2
• Contact Resistance:500 Ohm maximum
• Insulation Resistance:DC100V 50M Ohm minimum

Mechanical Data

• Switch travel: 3.0+-0.5 mm
• Operating force: 60+-10g
• Switch reliability: 10 million cycles
• Packing information: 1 pc/box, 20 pcs/ctn

Environmental Specifications

• Operating temperature:0~50 C
• Storage temperature:-20~+60 C
• Humidity: 80% RH~95%RH

Notebook Structure (Scissor)
