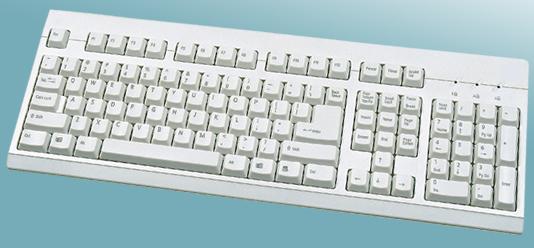

8851 Enhance Keyboard
　

OEM Keyboards

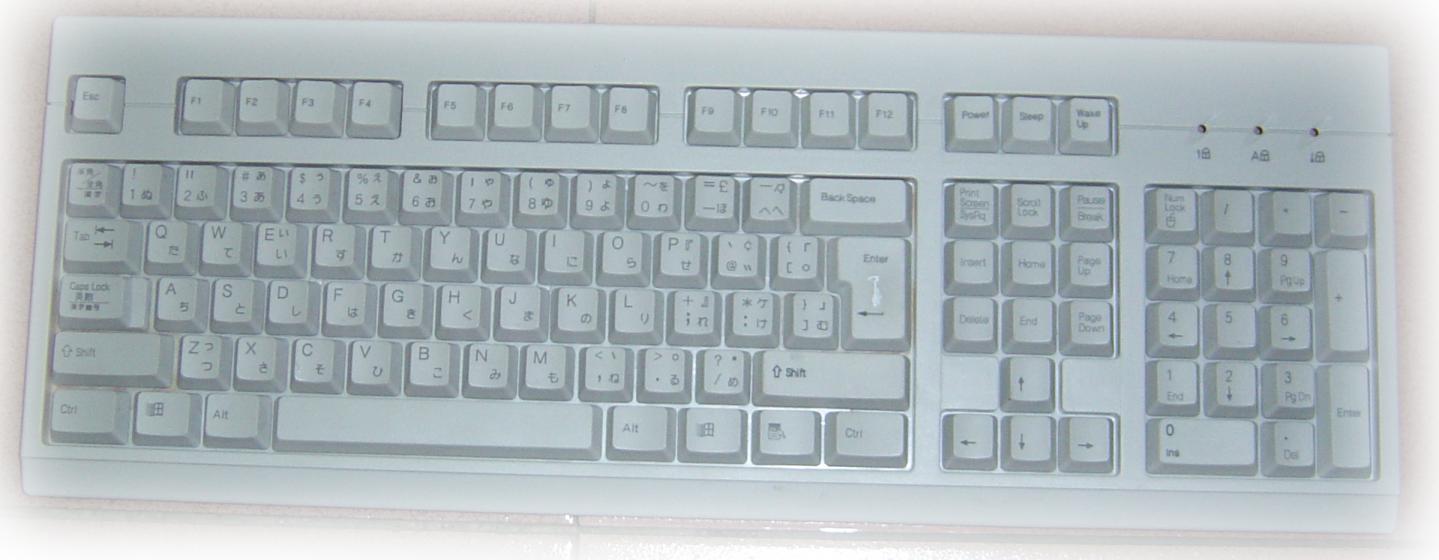

Japanese Keyboard
　


Features:

l         Quiet membrane tactile key switches for longer life.

l         Laser printed keycaps for longer wear.

l         Large ENTER and Spacebar key.

l         With three ACPI power management keys: Wake up, Sleep, Power off

l         Unique mute design, stylish figuration

l         Key switch life≥20,000,000times

l         Worldwide language layout supported

l         Rigid metal plate structure, free of interference



Specifications

l         Compatibility: fully comply with PC AT PS/2 and Microsoft Windows OS

l         Connector: 6 Pin Mini Din PS/2 type

l        EMI: FCC Class B, CE

l        Dimension: 454.5(L)×164(W)×20.5(H)mm;0.59Kg

　

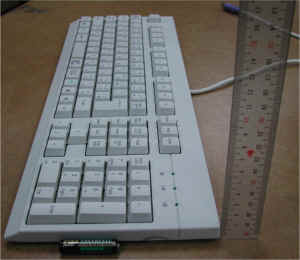

Slim Design Windows Keyboard

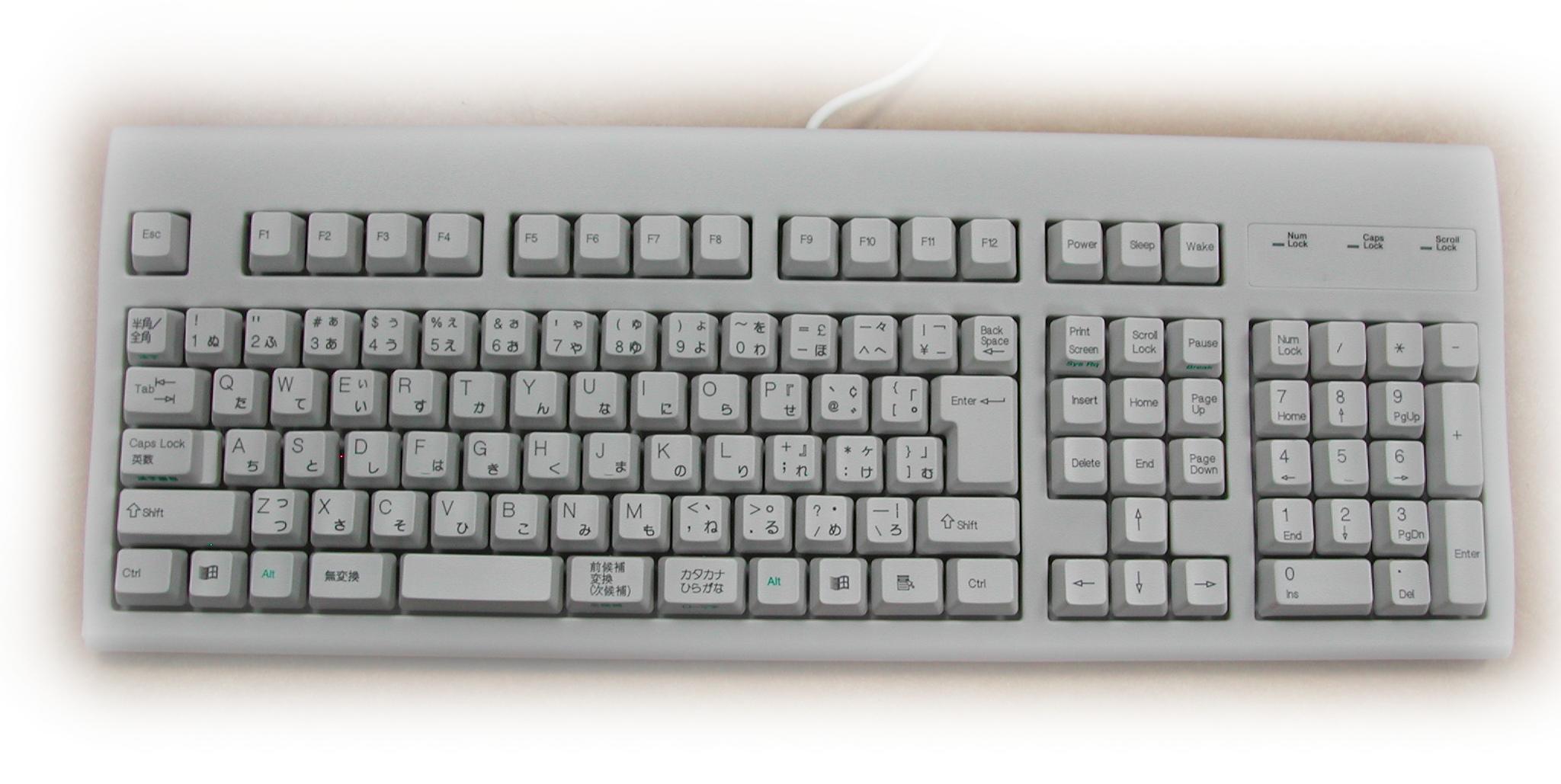

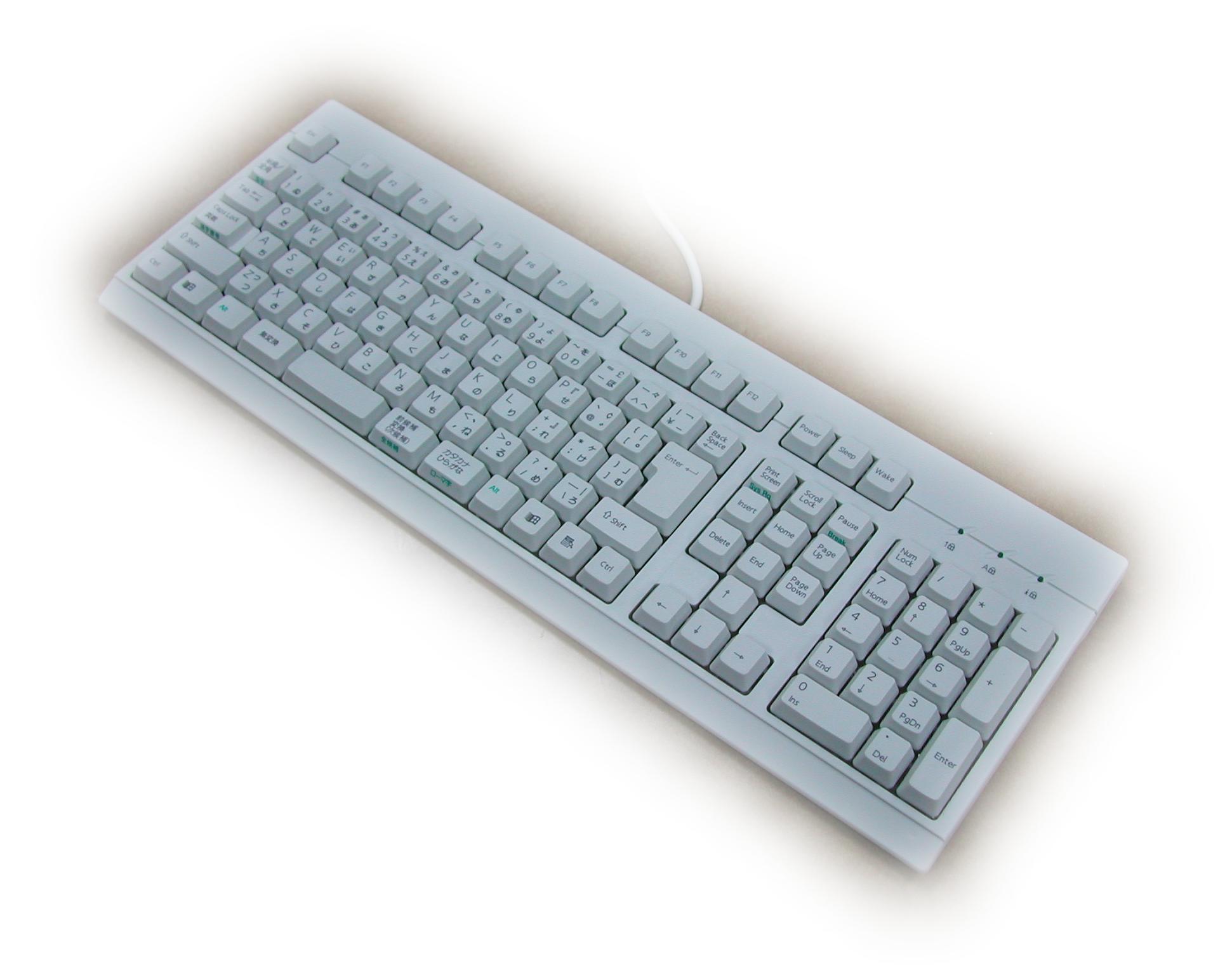

click for bigger photo for JAPAN layout



 K8851 is an entry level 107/ 108-key keyboard with 3 power- management keys, and 3 Windows keys. It is a full size (454.50(L)x162.0(W)x12.50(H) mm) model with step-sculptured key caps, reliable membrane contact and tactile feedback. K8851 is a good option for economic computer systems.

Special "Fn" Key MultiMedia Function Supports

Feature
Super Slim Design, Light, Low Profile

Slim Size 108/109 keys enhanced layout

Provides three ACPI power management keys: Power on/off, Sleep, Wake Up

Stylish and contoured design

12 function keys

Spill resistant

Low profile design

Laser printing or coating  printing keycaps for longer wear

High Quality, Economic Solution, Low cost keyboard

Electrical Specification

  • Maximum Ratind: +5.0VDC±10%,200mA maximum

  • Switch mechanism : membrane with tactile feedback

  • Type of circuit : 1 circuit 1 contact

  • Compatibility : fully compatible with PC/AT & PS/2, USB

  • Contact Resistance: 500Ohm maximum

  • Insulation Resistance: DC100V 50M Ohm minimum

  • Compatible: WIN 95/98/2000/NT/ME/XP,IBM PC/XT/AT

Mechanical Specification

  • Key number : 108 / 109 /112 keys for US/EU/JP

  • Switch travel : 3.5 + 0.5 mm

  • Operating force: 55 ± 8g

  • Switch reliability : 10 million cycles

  • Keyboard dimension : 454.50(L)x162.0(W)x12.50(H) mm

  • Keyboard weight : 0.6 kgs/pc, N.W. 12  kgs/ctn G.W. 15.2 kgs/ctn

  • Packing information : 1 pc/box, 20 pcs /ctn

  • inner box mens. 456.00x 162.00x20.00mm

  • out box mens.480x295x380mm /ctn

  • Container load : 11,000 pcs / 20'

Environmental Operating Condition

  • Operating temperature : 0oC ~ 50oC

  • Storage temperature : -20 oC ~ + 60oC

  • Humidity : 80% RH ~ 95% RH

Super Slim

OEM Keyboards

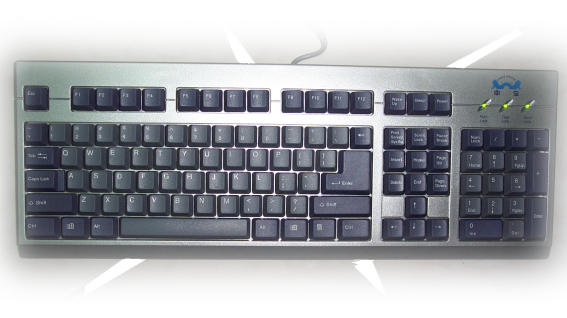

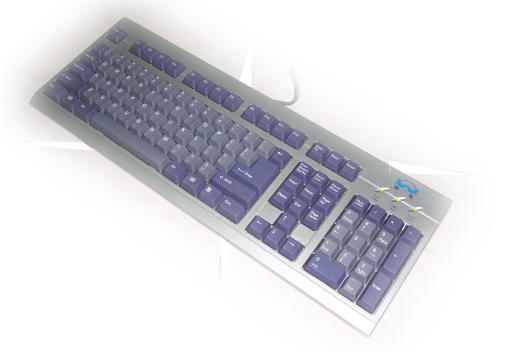

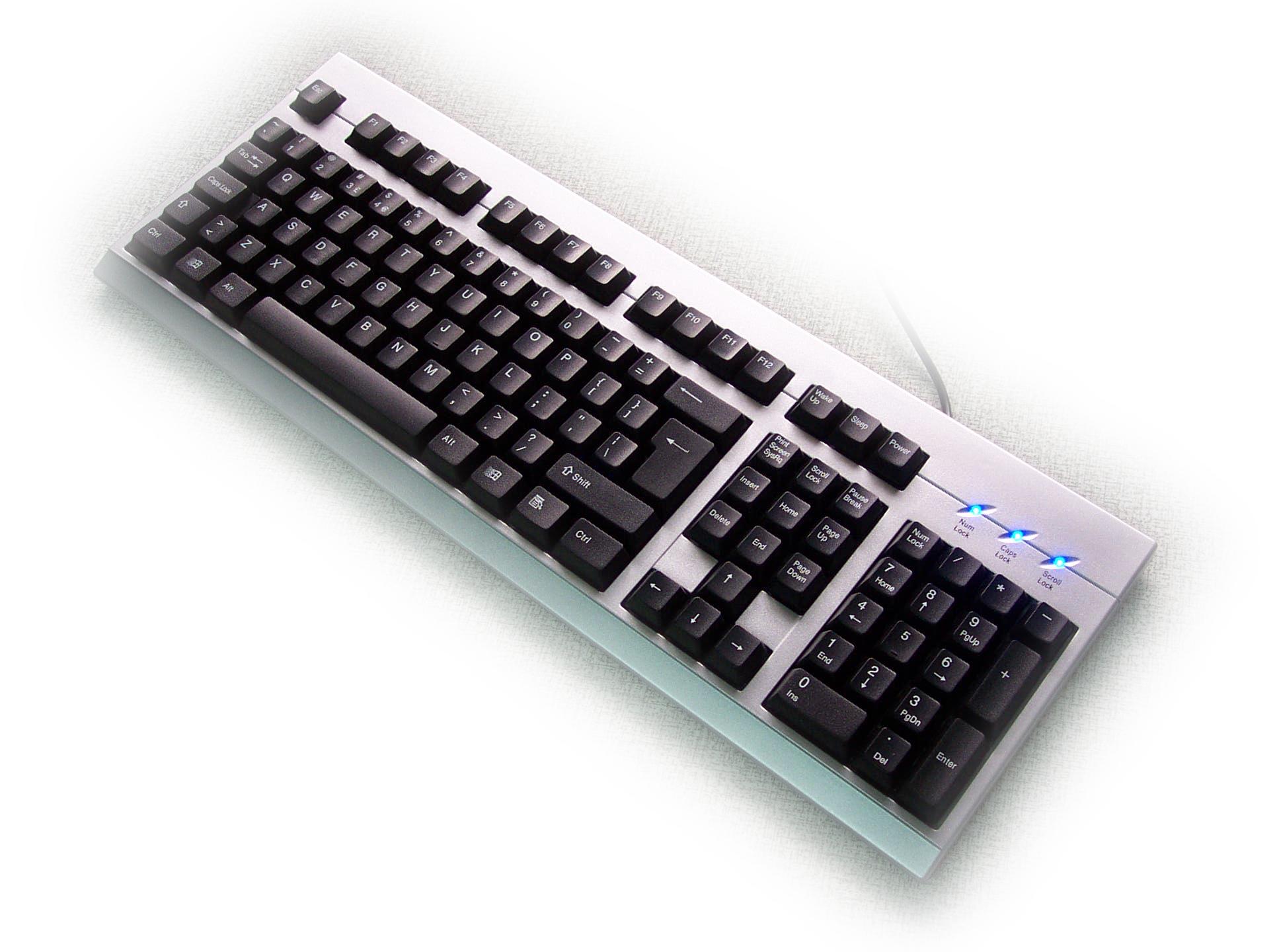

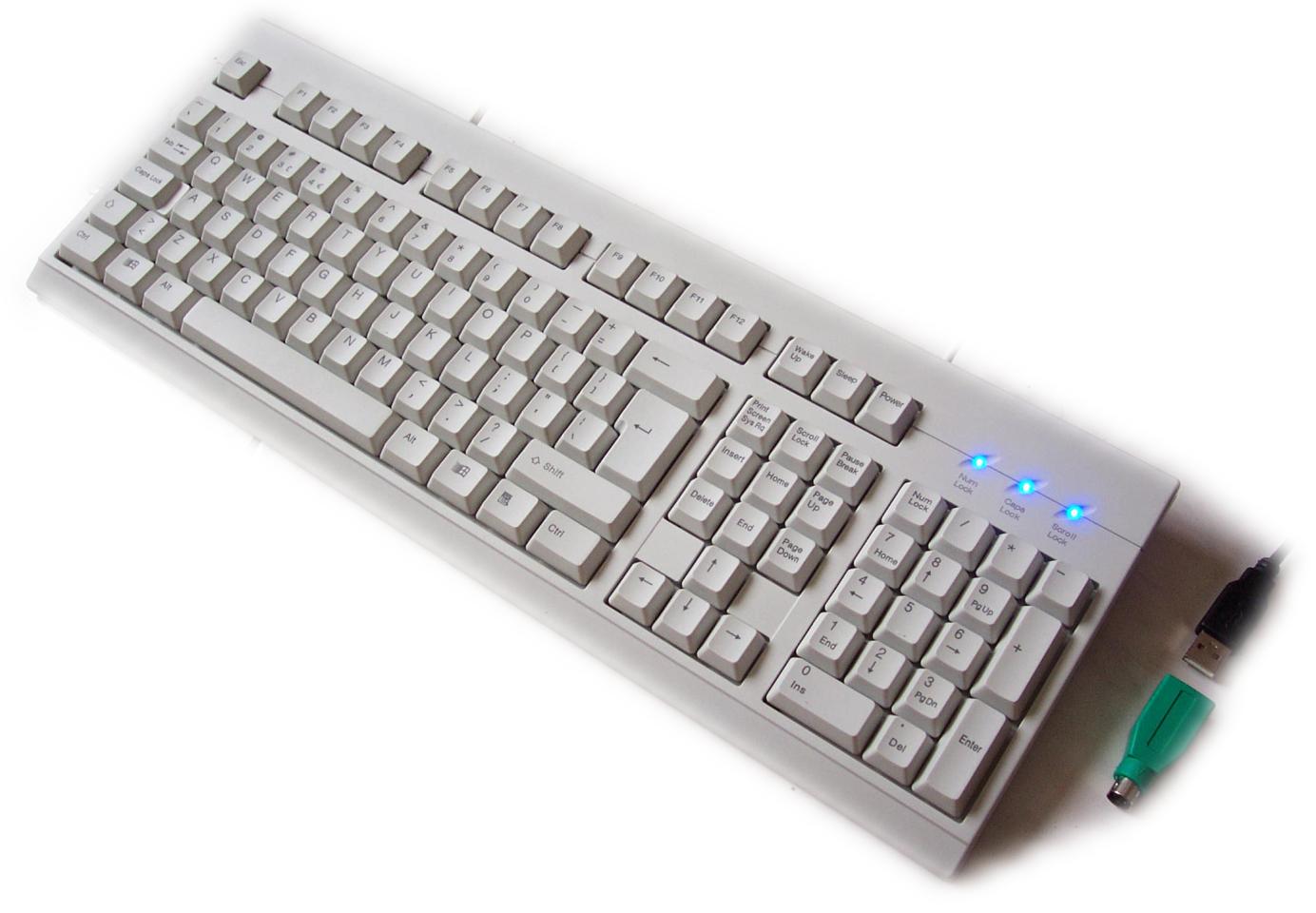

COMBO with BLUE LED COMBO with BLUE LED





Special "Fn" Key MultiMedia Function Supports

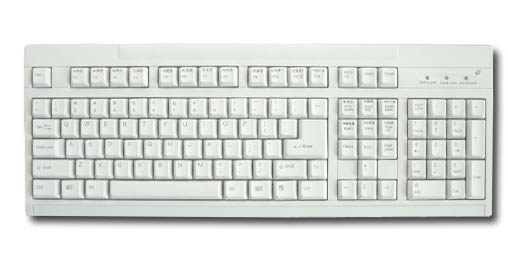

中文Hotkey







US Hotkey

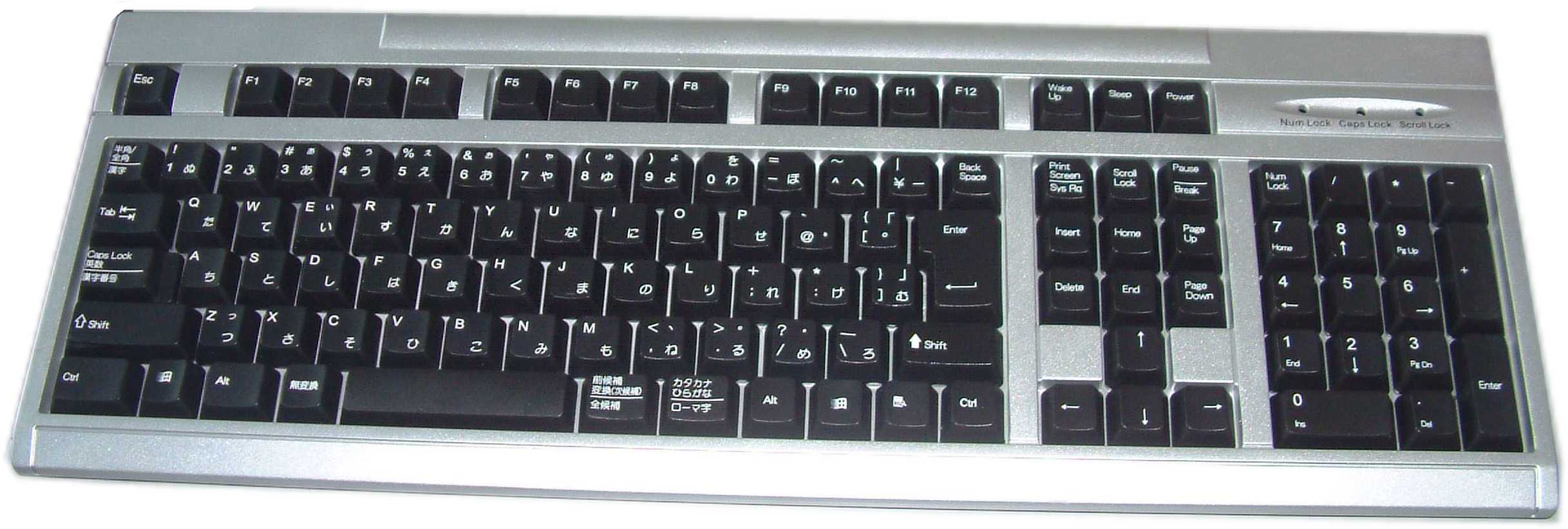

8862 JAPAN

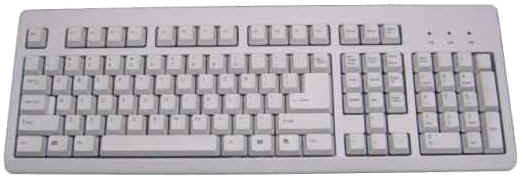

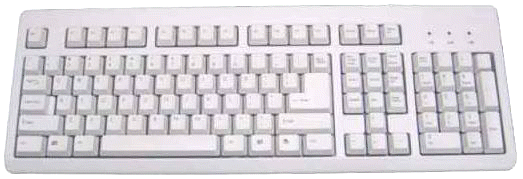

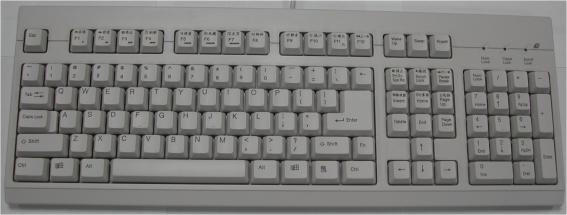

US WG-2000 Entry level keyboard

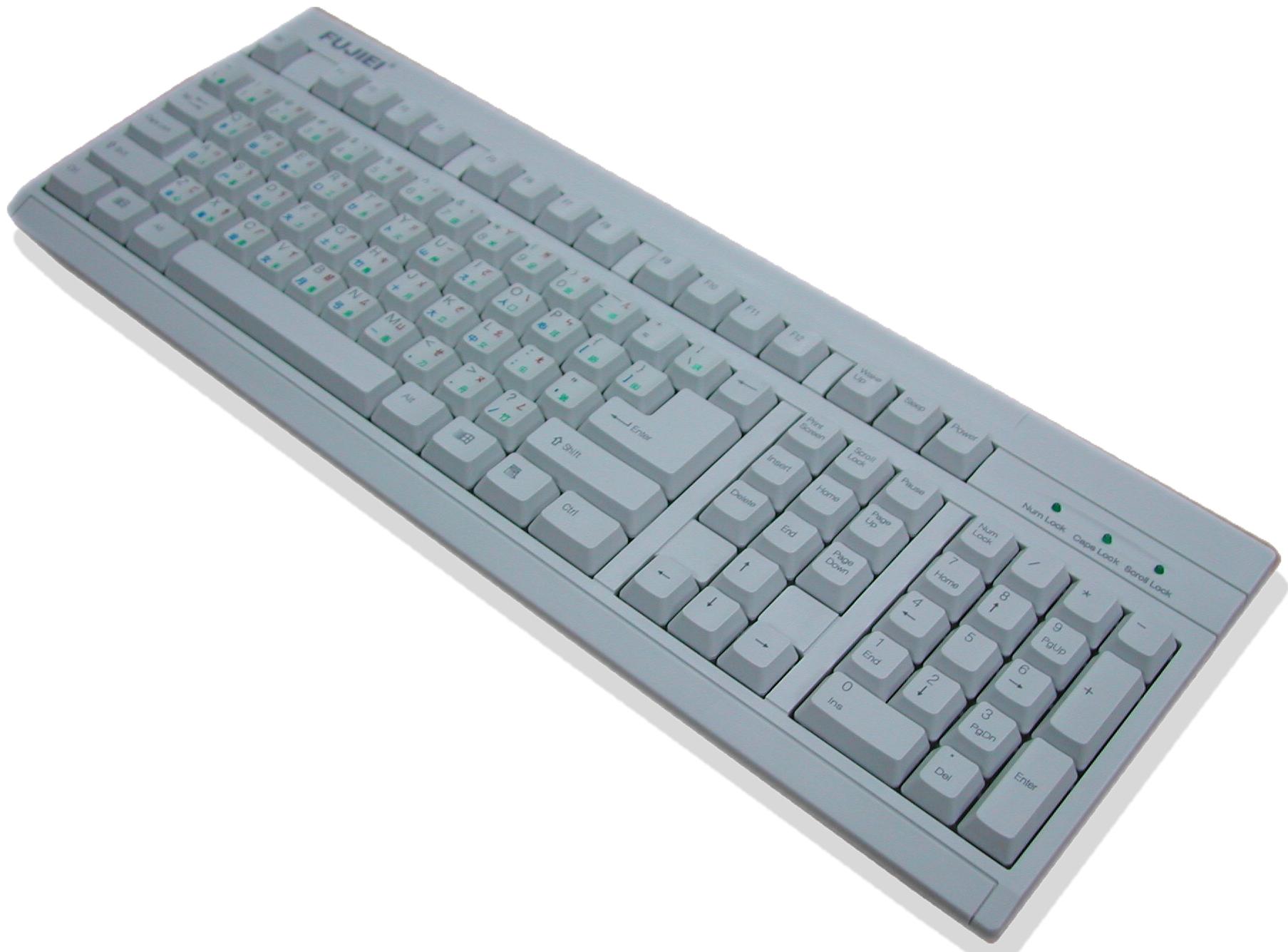

大易中文 click for bigger photo



JAPAN PACKAGE

CHINESE PACKAGE 1  CHINESE PACKAGE 2
