Tube Pipe Punching Machine for Rectangle Tube/Round Tube/Circle Tube/Square Tube/Ellipse Tube Pipe

IW500DL NC Digital Dual Cylinder Linear Pipe/Tube Punching Machine (Puncturing Machine with Servo Motor)/Tube Puncher

Станки для пробивки отверстий в трубах и профилях

SHELVING MAKING MACHINE            Español    Contact    Home    sales@likest.com    APPLICATION

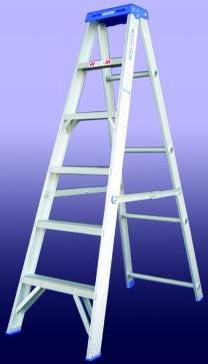

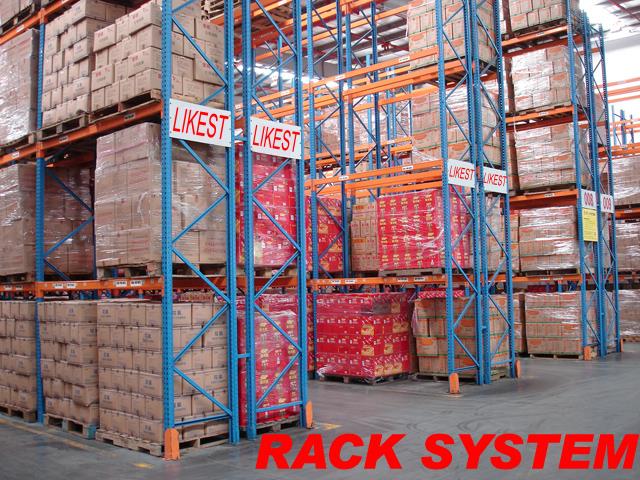

Applications: MOBILE SHELVING SYSTEM, Bed, Furniture, Scaffolding (Ring Lock & CUP Lock, Tours, Frame Systems, Table type, Props, Accessories), LADDERS, truck body builders, display stand, metalworking industries manufacturing for Automotive Manufacturing, Gas Stove, power energy and electrical wire distribution, Racking and Shelving and base of your Custom Signs, Electronic Displays, Resorts & Casinos, Outdoor Media and Repairs & Maintenance, high volume and different purpose punching for Rectangle Tube/Round Tube/Circle Tube/Square Tube/Ellipse Tube/Perforation and much more......

WARNING: Our machine was copied by China. DO NOT BUY the copied machine from CHINA. Buy it, if you need poor quality machine.

Application: (SPECIAL DESIGN OR BIGGER PRODUCT SIZE IS WELCOME)

Round Tube: 1"~3" (25.4 * 76.2mm)

Square Tube: 25*25~50*50mm

Rectangle/Oblong Tube: 20*40~40*80mm

Ellipse Tube: 20*40~40*80mm

Specifications: (SPECIAL DESIGN IS WELCOME)

1. The machine have an Auto feeding Function for the tubes

2. Servo Feed-in Positioner Frame for Material Length: 7000mm (SPECIAL DESIGN OR LONGER TUBES IS WELCOME) for Different variable Lengths of the tubes

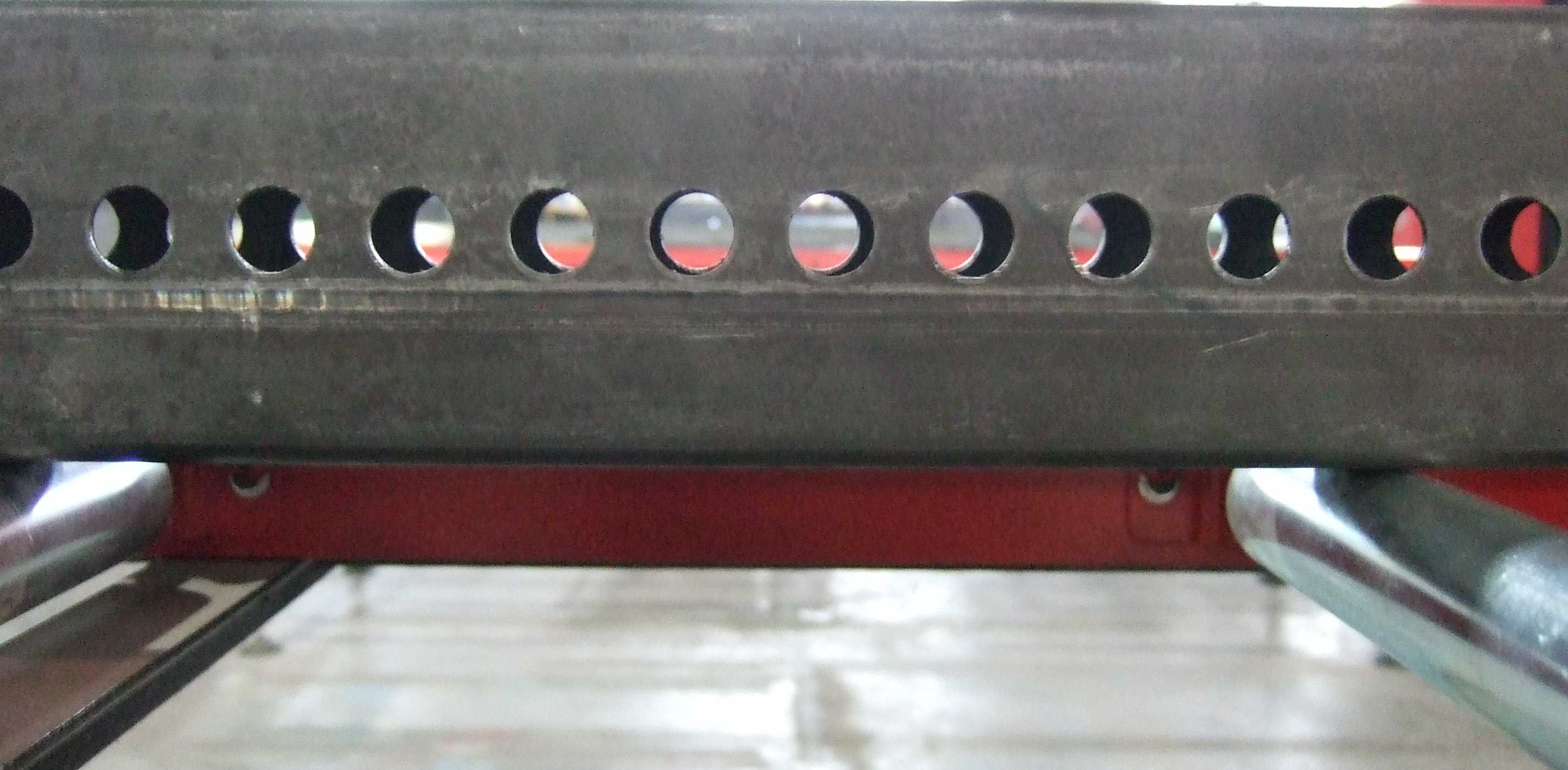

3. Punching Types for Holes: Blind Hole, Through Hole, Perforation

4. Option: with Y-Axis [FEED] & B-Axis [Rotate] Servo Motors which can clip the tube & ROTATE the tube to punch the holes in the different angles

Features:

1. TFT Human Machine Touch Interface Display Control Systems: TFT human machine interface display, touch controllable display setting, digital control systems, servo motor position scaling precision, and modular memory function.

HMI: Human Machine Interfaces

2. Punching Motion types:

   2-1. Single Punching Operation

   2-2. Irregular Interval Punching (You can set irregular C/C distance between holes)

   2-3. Regular Interval Punching. (You can set regular C/C distance between holes)

3. Production Capacity: 20000-40000 holes/8 hours (Single Line)

4. The machine have an Auto feeding Function for the tubes. Forward and Backward the tubes is moved by Servo Motor. You can adjust the punching speed and the feeding speed faster. Tube will be clamped by Hydraulically.

5. For thru punch, the scrap from top hole and scrap from bottom hole will go down to the Scrap-Box.

6. Operational Function : Jogging/Automatic Functions

7. Oil Hydraulic System : step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration

8. Whenever the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM. It is also featured with high speed downward moving, low speed processing and hi-speed position resume. It is available to increase the formation stability of work pieces during puncturing. In addition  to increasing the activation speed, it can effectively reduce HP load to save electrical energy.

9. The electrical control system is designed with human machine interface150mm (Stroke available for positioning) the mold set is designed with 600mm in depth avail-able for forward and backward 150mm moving accessibility. Our machine is designed with the Italy-made Optic Digital Ruler (LCD display) with high precision.

10. Our machine is adopted with Japan-made servo motor driving devices and the feed-in and receiving speed can be set to high speed and high precision to enhance the productivity.

11. It is featured with sufficient clamping force of clamping hydraulic cylinders and the position of word pieces is stable and uneasily loose off.

12. Applications: Square Tube, Rectangle Tube, Ellipse Tube and Round Tube punching.

13. Servo Feed-in Positioning Frame length :4000mm~7000mm or more (Depend on customer's request)

14. Machine Body : 1500mm (W)*8200mm (H)*2500mm ;Total Weight :5Ton


Автоматический станок для пробивки труб IW500DL.

Низкочастотный,  гидравлический привод станка эффективно снижает шум,  повышает производительность и срок службы двигателя.
Цифровая система управления с модульным устройством памяти снабжена TFT сенсорным дисплеем, обеспечивает высокую точность позиционирования отверстий.
Режим работы автоматический или командный. Пробивка может осуществляться в одиночном режиме, непрерывном  и с равномерными промежутками,  а также в  непрерывном с неравномерными промежутками между отверстиями.
Конструкция гидравлической станции позволяет настраивать её на оптимальный энергосберегающий режим работы.
Машина оснащена электронным детектором-позиционером итальянского производства с выводом поступающих данных на ЖК-дисплей.
В станке применяются сервоприводы японского производства, что позволяет добиваться высокой скорости и отличного качества работы.
Область применения: профильная и круглая труба.

Технические характеристики:
Максимальная длина трубы ........................... до семи метров
Мощность системы .......................................5.6кВт
Давление пробивки ......................................50тн
Габариты ............................................8200мм х 1500мм х 2500мм
Вес ............................................................5000кг

   CNC/NC Tube Pipe Drilling Machine

IW50DL NC Digital Dual Cylinder Linear Pipe/Tube Punching Machine (Puncturing Machine with Servo Motor) for Rectangle Tube/Round Tube/Circle Tube/Square Tube/Ellipse Tube/Perforation
